Whether it’s thick wet conditions, overgrown properties, or stalky grasses in its path, the Mach One will easily cut it down to size. Its high-volume output (HVO) Deck provides increased depth from trim side to discharge side so it can process greater material volume. This unit is packed with essential features guaranteed to give you a smooth and consistent ride.
An advanced cutting chamber is formed by setting the blades back four inches from the front of the deck for less clumping and more even grass dispersion. Gravely’s exclusive Constant Belt Tension System (CBT) ensures belt tension is maintained, keeping the blade tip speed and cutting results constant. The Mach One is unmatched when it comes to other commercial mowers in the industry.
For more information on how we collect, hold, use and disclose personal information, please see our privacy policy.

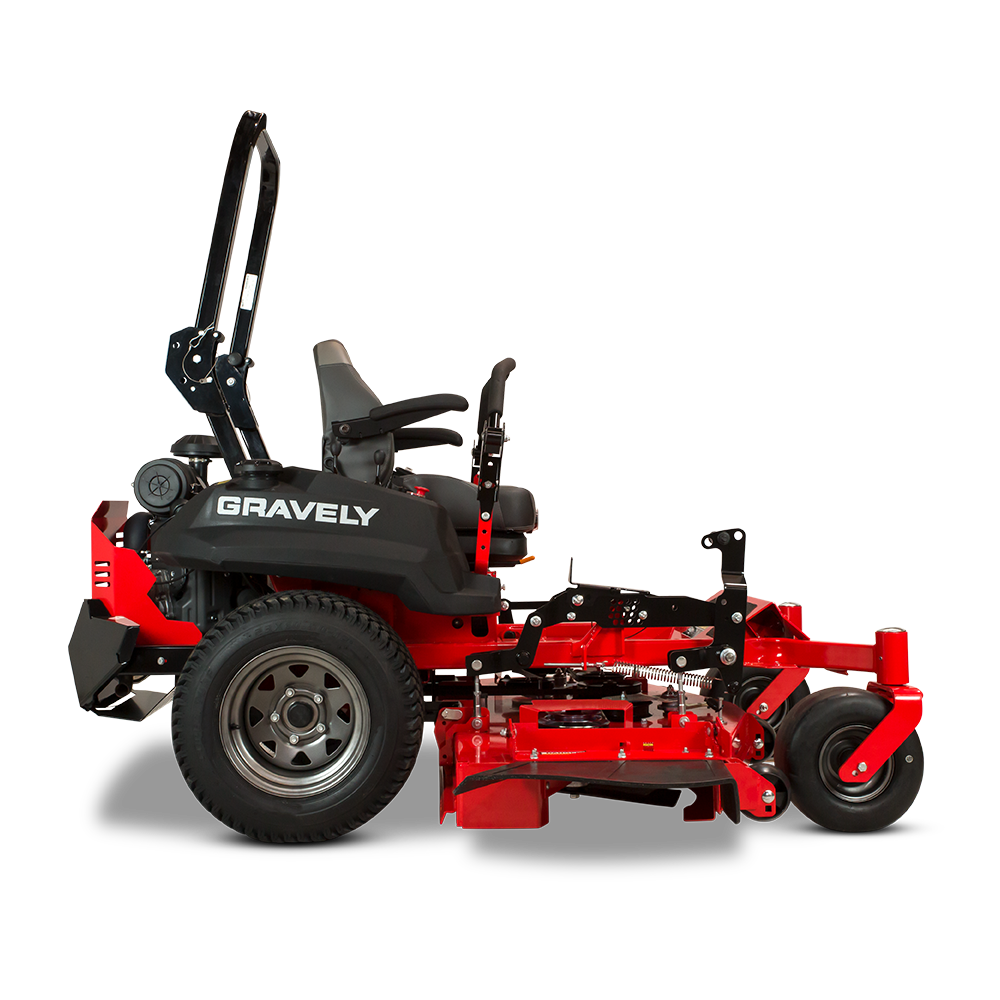

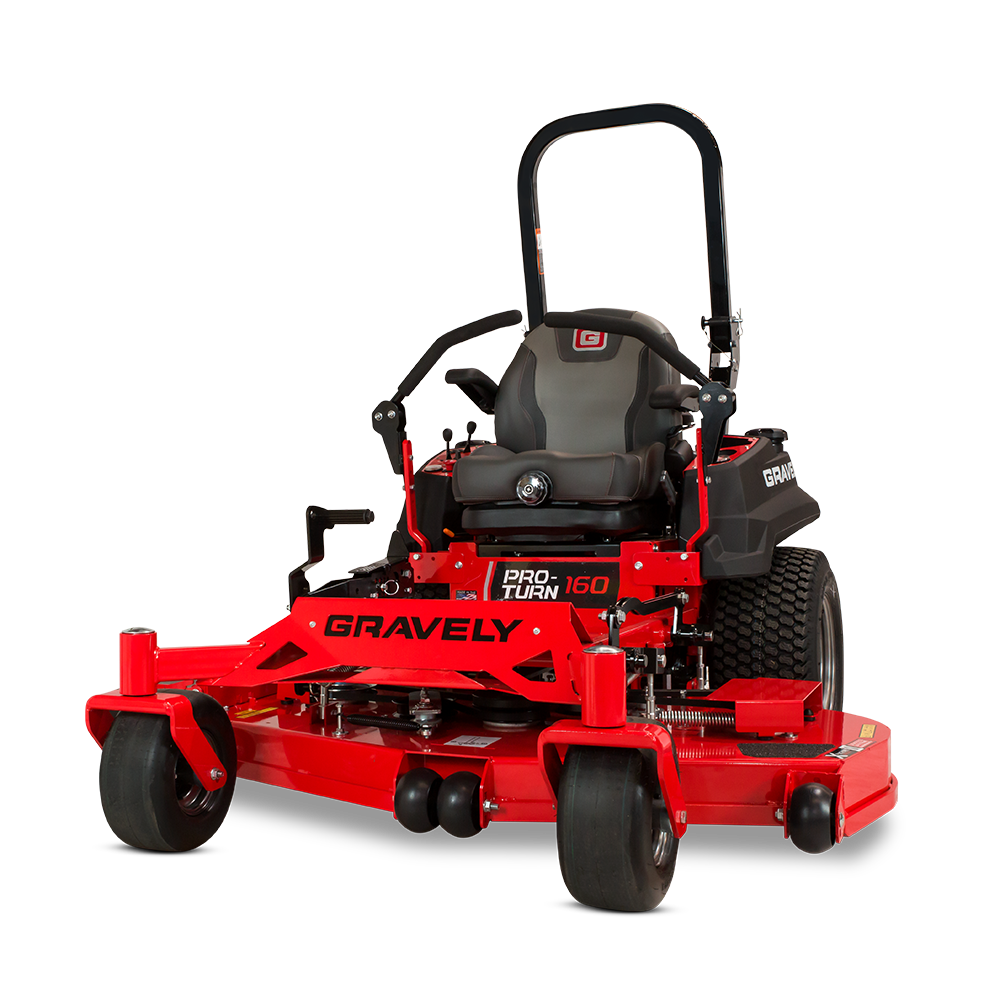

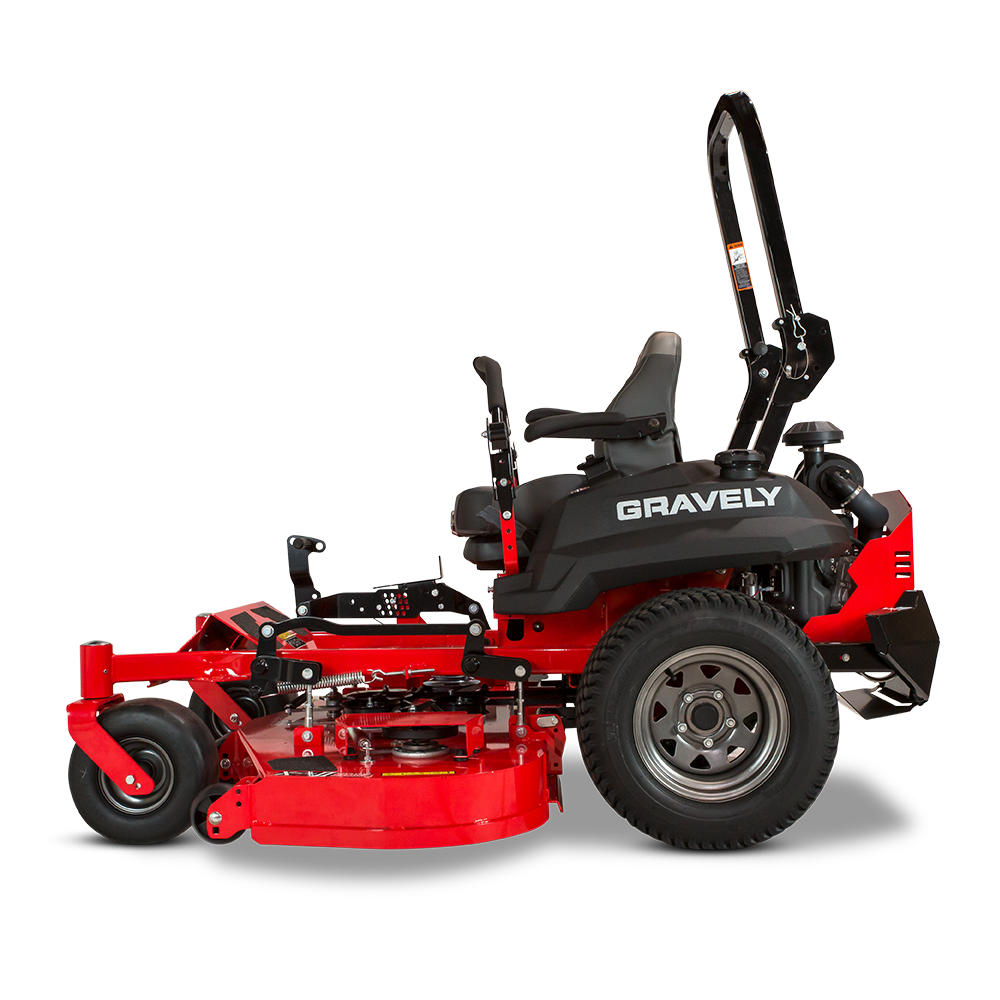

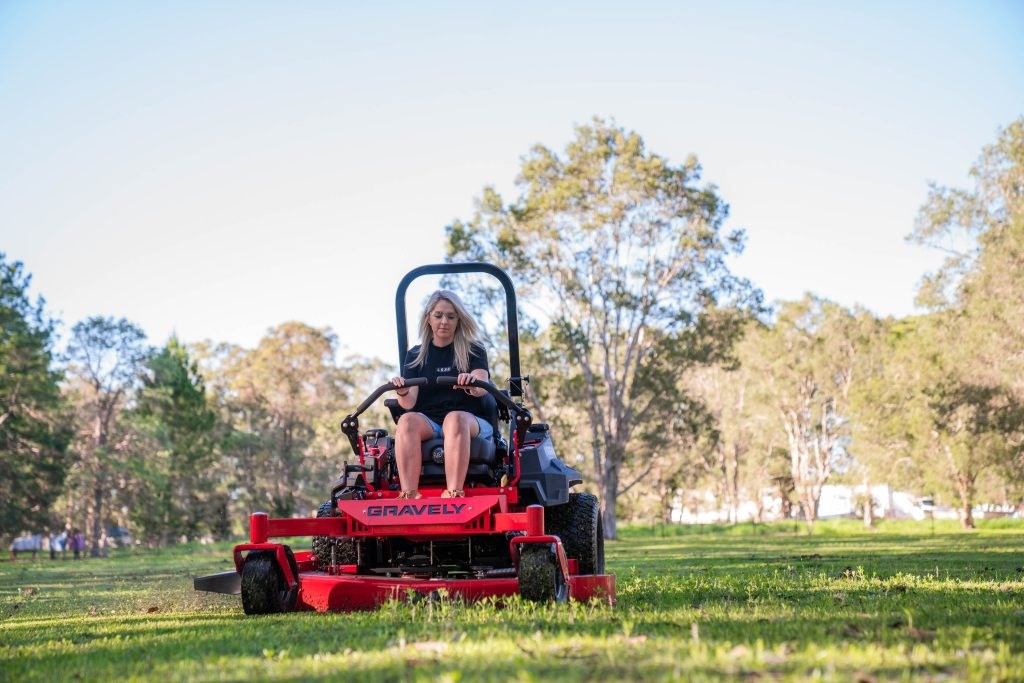

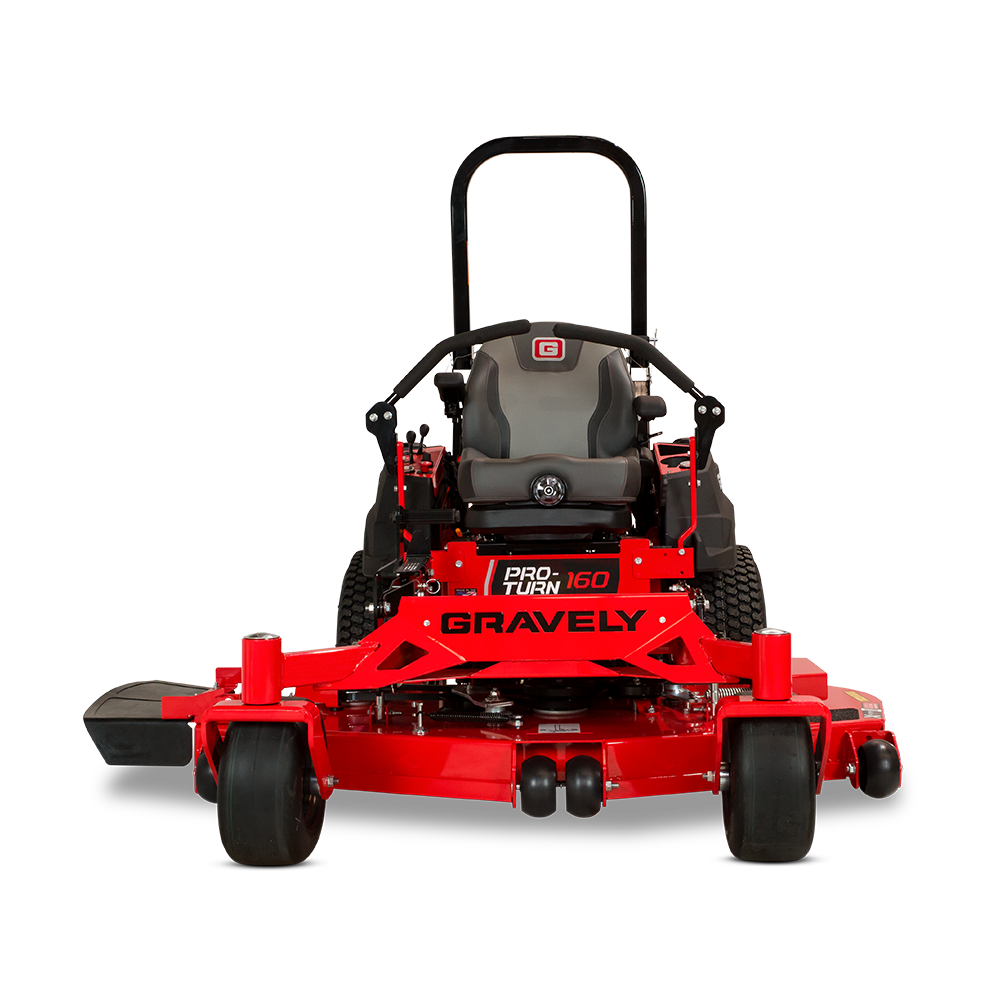

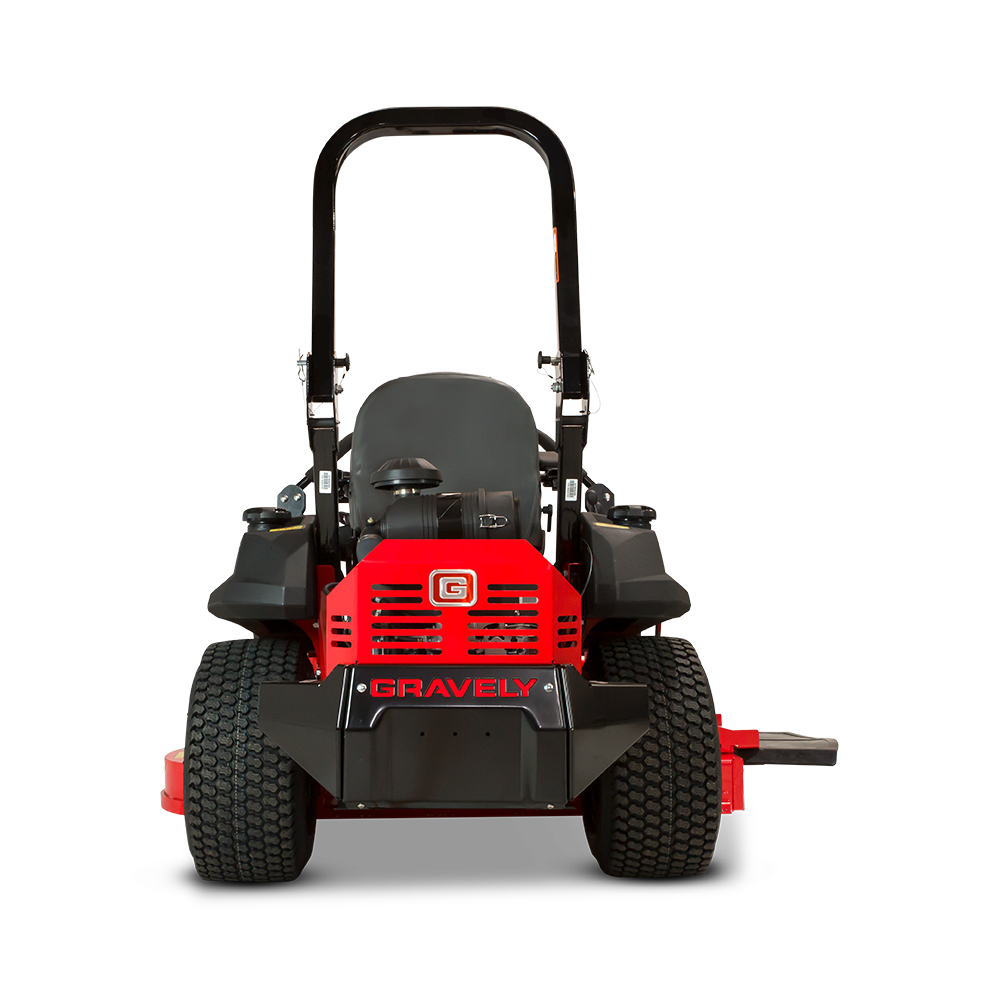

Click on the images below to enlarge.
| Specifications | |
|---|---|
| Model | AGU992297 |
| Engine Manufacturer | Kawasaki FX921V |
| Horsepower / Displacement | 31 HP / 999 CC |
| Drive System | Hydro-Gear ZT-5400 Transaxles |
| Fuel Capacity | 50.6 L |
| Ground Speed | 20.9 KM/H Forwards, 9.6 KM/H Backwards |
| Deck Size | 60" |
| Deck Material | 7 GA. Steel W/ 1/4 Inch Spindle Reinforcement |
| Deck Construction | Welded |
| Number Of Spindles | 3 |
| Blade Tip Speed (FPM) | 18,633 FPM |
| Spindle Housing Material | Forged Aluminum |
| Spindle Bearings | Sealed Bearing |
| Deck Engagement | Ogura GT 3.5 Electric Clutch |
| Deck Lift System | Foot Operated |
| Cutting Width | 60 Inch |
| Cutting Positions / Height | 19 Cutting Positions / 38.1 MM – 139.7 MM |
| Wheels Front | 15 x 6-6 Smooth W/ Greasable Tapered Roller Bearings |
| Wheels Rear | 24 x 12 – 12 Turf |
| Seat | High Back Comfort W/ Full Suspension Seat And Padded Arm Rests |
| Foldable ROPS | Standard |
| Weight | 624.6 KG |
| Length | 2032 MM |
| Width | 1549.4 MM With Chute Up, 1894.8 MM With Chute Down |
| Height | 1778 MM With ROPS Up, 1212.8 MM With ROPS Down |
| Warranty | 5 Year / 1250 Hour Commercial |
