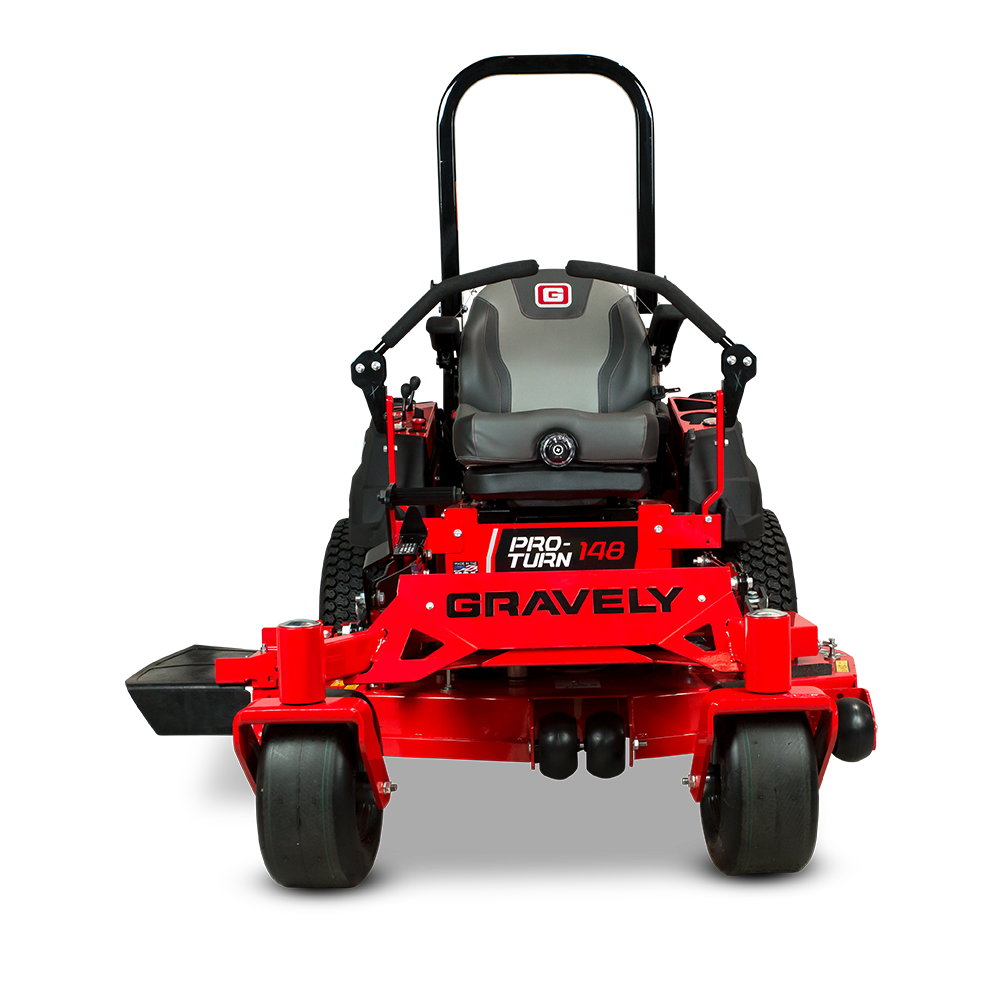

Capable of handling the toughest jobs you can dish out, the Pro-Turn 100 is always ready for more. Consistent cutting results, comfort for the long haul, and a 48” mowing deck make the Pro-Turn great value. There is no job too big or too small for this commercial unit.
Gravely’s exclusive Constant Belt Tension System (CBT) ensures constant belt tension, maintaining consistent blade tip speed and cutting results. This unit’s 7-gauge X Factor II Deck is fabricated from top to bottom, providing peace of mind with its industrial strength. The Pro-Turn 100 includes a full suspension seat that provides improved lateral stability and vibration control, ensuring comfort all day long.
For more information on how we collect, hold, use and disclose personal information, please see our privacy policy.
Click on the images below to enlarge.
| Specifications | |
|---|---|
| Model | AGU991128 |
| Engine Manufacturer | Kawasaki FX691V |
| Horsepower / Displacement | 22 HP / 726 CC |
| Drive System | Hydro-Gear ZT-3400 Transaxles |
| Fuel Capacity | 37.7 L |
| Ground Speed | 16 KM/H Forwards, 8 KM/H Backwards |
| Deck Size | 48" |
| Deck Material | 7 GA. Steel W/ 1/4 Inch Spindle Reinforcement |
| Deck Construction | Fabricated X-Factor II |
| Number Of Spindles | 3 |
| Blade Tip Speed (FPM) | 18,000 FPM |
| Spindle Housing Material | Forged Aluminium |
| Spindle Bearings | Sealed Bearings |
| Deck Engagement | Ogura GT 2.75 Electric Clutch |
| Deck Lift System | Foot Operated |
| Cutting Width | 48 Inch |
| Cutting Positions / Height | 17 Cutting Positions / 25.4 MM x 127 MM |
| Wheels Front | 13 x 6.50 – 6 Smooth |
| Wheels Rear | 23 x 10.50 – 12 Turf |
| Seat | High Back W/ Full Suspension And Molded Arm Rests |
| Foldable ROPS | Standard |
| Weight | 481.7 KG |
| Length | 1993.9 MM |
| Width | 1270 MM With Chute Up, 1574 MM With Chute Down |
| Height | 1727.2 MM With ROPS Up, 1219.2 MM With ROPS Down |
| Warranty | 5 Year / 1000 Hour Commercial |
