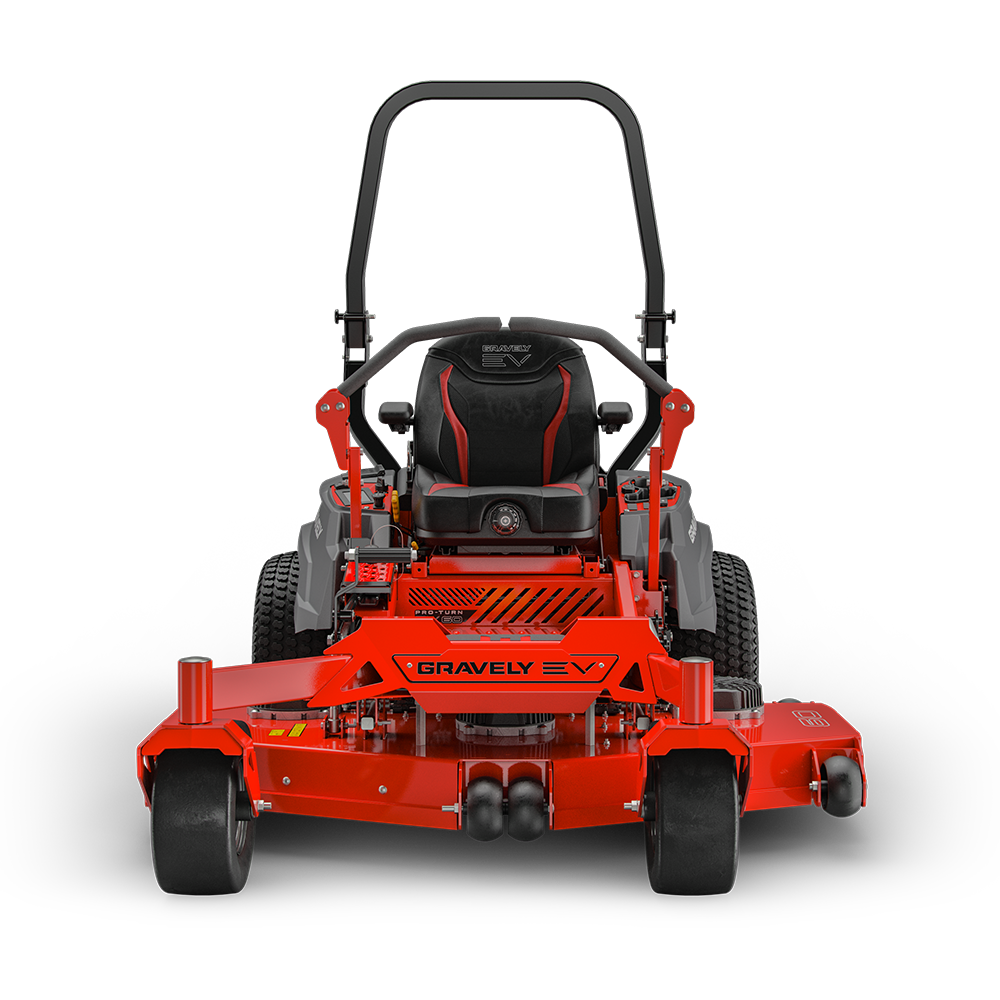

Pullies, belt, engine oil, and vibrations have all been replaced with the quiet hum of success. Gravely’s Pro-Turn EV 52″ RD unit features proprietary spindles with a blade slip feature that prevents damage in the event of an impact. They also have a bottom bearing for easy serviceability and routine maintenance.
This unit’s rear-discharge design reduces the chances of damage from any objects or debris being thrown from the mower deck during a session. Built with next-gen wheel drives, the transaxles are driven with a brushless electric-drive motor coupled with a dual-reduction planetary gearbox. Silence any doubt with Gravely’s Pro-Turn EV RD unit.
For more information on how we collect, hold, use and disclose personal information, please see our privacy policy.
Click on the images below to enlarge.
| Specifications | |
|---|---|
| Model | AGU997009 |
| Engine Manufacturer | 4 x 16 KWH Fusion Core Lithium Ion |
| Horsepower / Displacement | 5 KW Wheel Drive Moter / 3.5 kw Per Spindle Motor |
| Drive System | Proprietary Electric Transaxles |
| Fuel Capacity | N/A |
| Ground Speed | 12.8 KM/H Forwards, 6.4 KM/H Backwards (Low Speed), 17.7 KM/H Forwards, 8.8 KM/H Backwards (High Speed) |
| Deck Size | 52" |
| Deck Material | 7 GA. |
| Deck Construction | Fabricated X-Factor 3 Deck |
| Number Of Spindles | 3 |
| Blade Tip Speed (FPM) | 18,000 FPM |
| Spindle Housing Material | Cast Aluminum |
| Spindle Bearings | Serviceable Bottom Bearing |
| Deck Engagement | Electric DC Brushless Motors |
| Deck Lift System | N/A |
| Cutting Width | 52 Inch Rear Discharge |
| Cutting Positions / Height | 15 Cutting Positions / 38.1 MM – 127 MM |
| Wheels Front | 13 x 6.5 – 6 Smooth |
| Wheels Rear | 22 x 10.5 – 12 Turf |
| Seat | High Back Comfort W/ Suspension |
| Foldable ROPS | Standard |
| Weight | 590.1 KG |
| Length | 2108.2 MM |
| Width | 1371.6 MM With Chute Up, 1371.6 MM With Chute Down |
| Height | 1828.2 MM With ROPS Up, 1244.6 MM With ROPS Down |
| Warranty | 5 Year / 1500 Hour Commercial / 3 Year Battery Warranty |
